Brute Power and Sheer Stamina!
Castle Creations' introduction of the Mamba Monster was a break-through moment for R/C modelers wanting to experience what seemed to be unobtainable. Brute power and sheer stamina have made this our legacy “power up” for popular 1/8th scale buggies, truggies and on road vehicles and 1/10th scale monster trucks. The Mamba Monster 2 ESC is capable of 2S LiPo to a maximum of 6S LiPo and is waterproof, which means you can run your vehicle through the morning dew, across the soggy snow or just about anywhere else you’d be interested in running a 1/8th scale RC buggy or truck.
Power System Alerts
The Mamba Monster 2 is programmed to flash LED patterns to alert users to certain conditions such as over temperature or not detecting a valid signal from the receiver.
Programmability
Fully programmable Castle feature set using Castle Link USB adapter (coupon for free Castle Link adapter included in package) and freely downloadable Castle Link Windows software, or the Castle Link iOS App and a B-LINK Bluetooth Adapter (A small subset of the settings available through Castle Link Windows software can be accessed via manual programming through the transmitter stick).
Features
- Adjustable Internal BEC: 5.5V, 6.0V, 7.5V. or 8.0V (8A Peak), default 5.5V
- Factory equipped (30mm), fully removable cooling fan
- Waterproof design allows for use in nearly any environment
- LED error codes for common error conditions
- Convenient transmitter programming for nine common adjustable settings
- Full compatible with the Castle Link Programming Suite to modify settings and download software updates
- Proudly Designed, Assembled and Supported in Olathe, KS USA
Motor Features
- Input Voltage range: 2s-4s LiPo
- Redesigned rotor and stator assemblies
- Reduced magnetic cogging, producing less residual drag brake
- Increased efficiency, resulting in lower temperatures and longer run times
- Smoother start-up, reducing cogging or stuttering when starting from a stop
- Rebuildable design allows replacement of front end bell/bearing assembly or rotor/shaft assembly
- High-Strength Kevlar Wrap and 180C Grade Neodymium Sintered Magnets
- Oversized NMB Bearings and High-Temperature, High-Purity Copper Windings
Product Specifications
| BEC | Yes |
| BEC Voltage | 5 and 7 volts; default 5.5 volts |
| Brakes | Proportional |
| ESC Type | Brushless |
| Forward | Yes |
| Input Voltage | 2S-4S LiPo |
| Manufacturer # | 010-0108-06 |
| Motor Type | Brushless |
| Outer Diameter | 1.62" (41 mm) |
| Product Length | 2.66" (68 mm) |
| Product Weight | 13.6 oz (383g) |
| Reverse | Yes |
| RPM/Volt (Kv) | 2650KV |
| Sensored | Yes |
| Shaft Diameter | 0.19" (5 mm) |
| Shaft Length | 0.78" (20 mm) |
| Speed Control | Included |
| Water-Resistant | Yes |
- Castle 10 AWG, High-Strand-Count Silicone-Insulated Wire with 6.5mm Bullet Connectors
- High-Performance 0.2mm Steel Lamination Stacked Stator
- Oversized, low-resistance, gold-plated solder tabs
- Sensor board with High Quality Temperature-Stabilized Sensors
- T6 Aluminum CNC Machines Front/Rear End bell
- Proudly Designed and Supported in Kansas, USA
- Ideal for 1:8 scale off-road and on-road vehicles as well as 1:10 scale 4WD SCT up to 9lbs

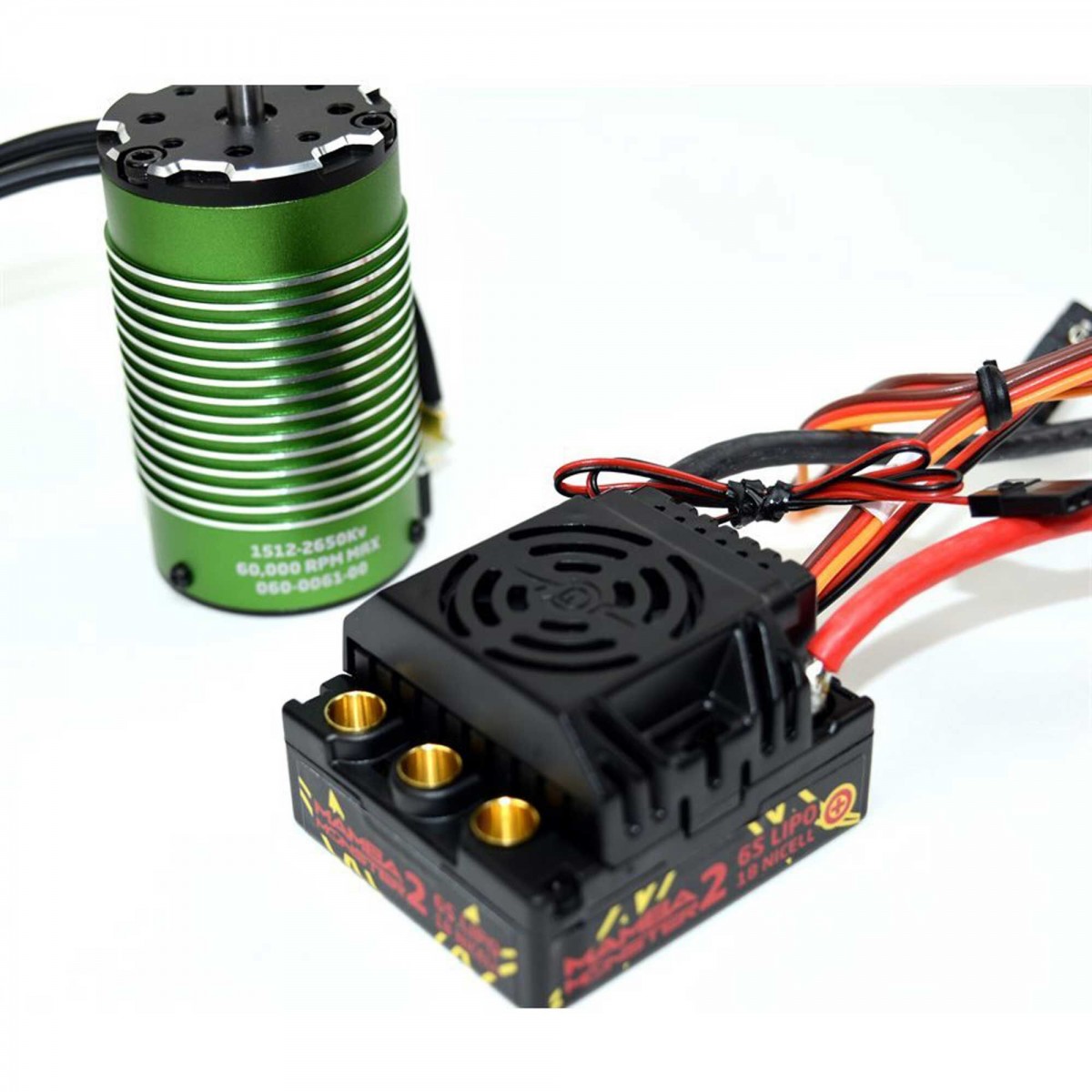

CPE-MMonster2_2650KV: Castle Creations Mamba Monster2 ESC w/ Sensored 1512-2650KV V2 Motor
- Manufacturer: Castle Creations
- Man. P/N: CSE010-0108-06
- Stock Status: In Stock!
-
$294.95
